tergumed 600 - Lateral Flexion

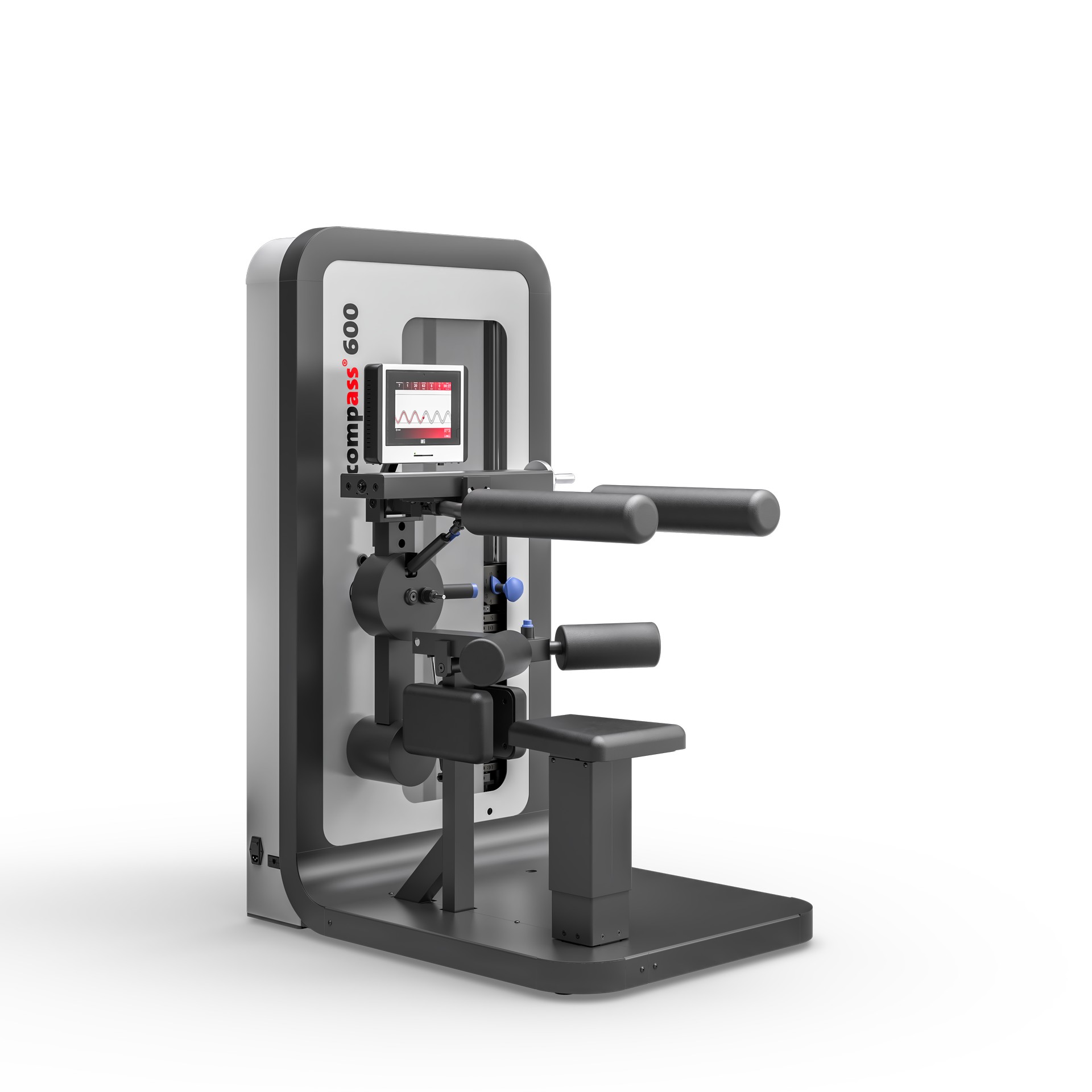

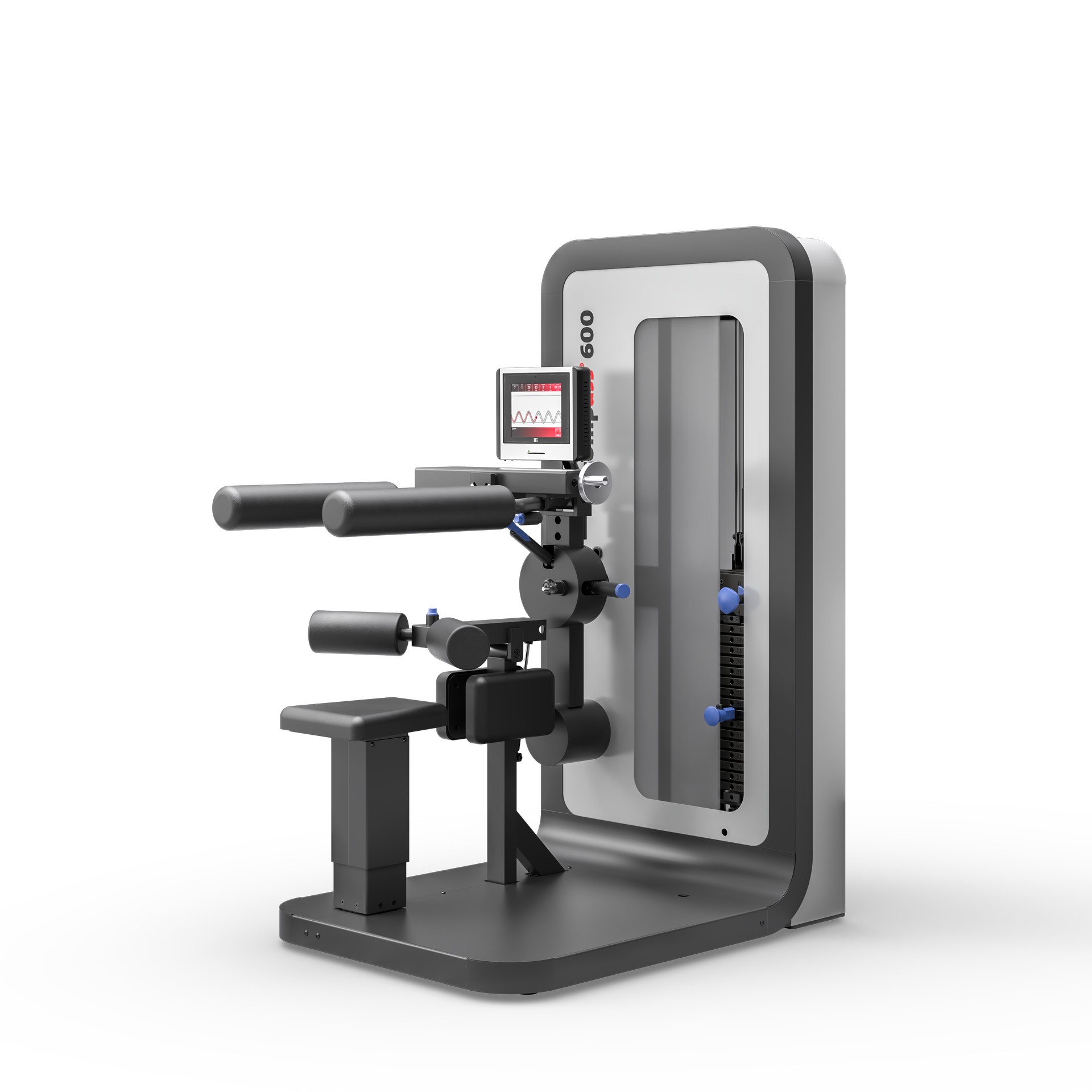

Illustration including optional equipment

Frame

RAL 7021
Black grey frosted

Casing

RAL 9006
White aluminium

Upholstery

F6461454
Feuer

F6461197
Anthrazit

Optional equipment for extra charge

To the Online-Showroom

*The colours shown may differ from actuality depending on the monitor and screen resolution

Specification

  • Strength testing and training for trunk lateral flexion
  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • smart assist for training control
  • Integrated RFID
  • Visual feedback strength training with individual curves
  • Automatic seat height adjustment
  • Ultrasonic sensors for weight detection
  • 0 to 84 kg training weight with 1 kg step increments
  • Reproducible scaled positioning
  • Laser pointer for optimal positioning
  • Start position adjustment in 10° steps
  • Stepless trunk fixation adjustment
  • Stepless thigh fixation adjustment
  • Weight block cover for protection
  • Dimensions (L/W/H): 126/92-115/163 cm
  • Total weight block: 80 kg (16 x 5 kg)
  • Total weight: up to 370 kg
  • User weight: max. 180 kg
  • Energy consumption standby: 0,0042 kWh
  • Energy consumption in operation: 0,018 kWh/0,022 kWh* (*=Fully equipped (position and pulse sensors))
  • Isometric measurement system
  • Position and pulse sensor
  • Analogue interface (data output of the force signal to an external, analogue receiving system, for combination with EMG)
  • Foot plate extension for wider foot position

User manual compass 600

User manuals for older or discontinued devices are available free of charge on request from our service department at service@proxomed.com. Please state the exact device name incl. serial number and your address. We will send them to you.
