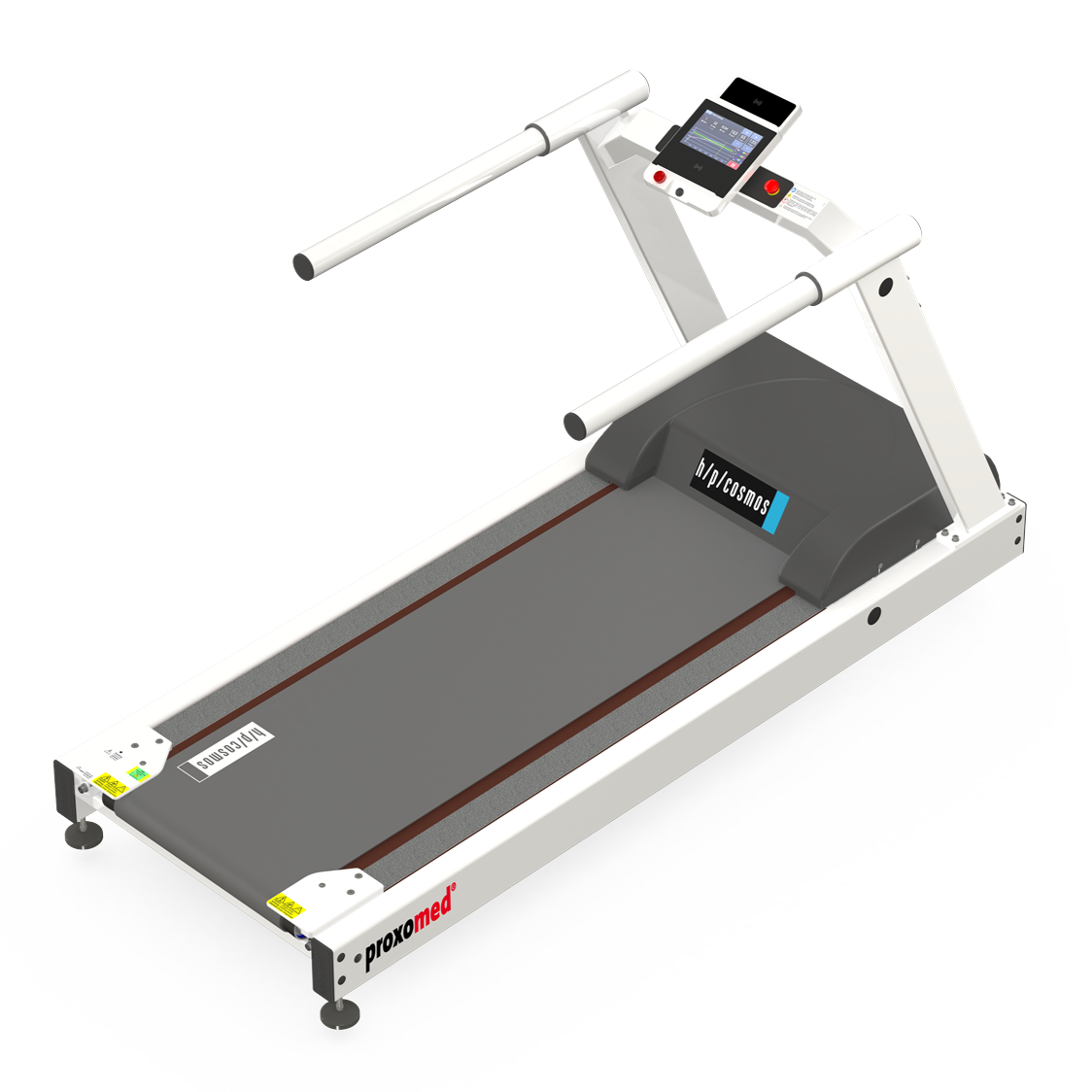

h/p/cosmos - kardiomed 540 pluto

Frame

RAL 9010
Pure white

*The colours shown may differ from actuality depending on the monitor and screen resolution

Specification

  • Tested safety in accordance with the European Medical Device Regulation (MDR)
  • User terminal by Emotion (centered) with keyboard and display
  • RFID Mifare connection to proxoforce optionally available
  • Emergency stop button
  • Short handrail
  • Flat entry with 23 cm
  • 3 or 9 training profiles (quick start, watt, pulse; when purchasing the therapy package, additional: calorie training, hills, random, freely programmable interval training, distance, watt sensitive)
  • Dimensions (L/W/H): 210/86/126 cm
  • Running Surface (L/W): 150/50 cm
  • Total weight: 240 kg
  • User weight: max. 150 kg
  • Grid dependent
  • Performance range: 0 - 22 km/h
    • Graduation 0.1 km/h
    • Inclination 0% - 25%
  • RFID Mifare connection to proxoforce
  • User weight up to 250 kg
  • Safety bar
  • Long handrail
  • Adjustable handrail
  • Children's handrail
  • Direction of rotation reversal
  • Arm rests with scale and joint
  • robowalk expander system: adjustable expander cables provide support and resistance during walking and running
  • Wheelchair ramp
  • Dynamic weight relief system airwalk ap
  • Gait analysis via zebris pressure measuring plate

User manual h/p/cosmos

User manuals for older or discontinued devices are available free of charge on request from our service department at service@proxomed.com. Please state the exact device name incl. serial number and your address. We will send them to you.
